exosys / enforcegate-vx  ·  secure web gateway

Enforce.
Filter. Control.

EnforceGate vX secures your network with URL filtering, access control, and automated threat blocking — deployed as a self-hosted virtual appliance on your existing infrastructure. No proprietary hardware, no per-seat fees, no cloud dependency. Managed from the CLI and automated via REST API.

Early Access ESXi · Hyper-V · KVM · Docker Self-hosted
$ get started → read the docs
egctl — EnforceGate vX Control Utility
connected
# check engine status
admin@xeg01:~# egctl status
● enforcegate-vx.service — active (running)
Engine: vX-2026.01 (rev 20260301)
Connector: v2026.01 (squid/6.14) [UP]
ACL rules: 1,247 loaded
Uptime: 14d 06h 12m 27s
Threat Intel Rules: loaded with serial:260324000022 (updated 20m ago)

# tail the policy enforcement log
admin@xeg01:~# egctl log --follow --filter DENY
2026-03-17 09:41:08 DENY 192.168.1.42 malware-c2.ru [threat/botnet]
2026-03-17 09:39:22 DENY 192.168.1.55 phishing-kit.xyz [threat/phish]
2026-03-17 08:22:42 DENY 192.168.1.99 trojan-metasploit [threat/trojan]

# reload policies without restart
admin@xeg01:~# egctl policy reload
✓ 15 policies successfully reloaded
admin@xeg01:~#
100k +
Access control lists supported
< 50ms
Policy decision latency
10Gbps +
Throughput
100%
Hardware-agnostic
architecture

How EnforceGate vX
processes your traffic.

It runs on commodity x86-64 hardware — self-hosted on your own infrastructure, no proprietary appliances required.

features

Everything you need
to secure your network.

URL filtering, access control, threat blocking, and audit logging — in a single self-hosted appliance. Operated from the CLI, automated via the REST API, and built to integrate with your existing stack.

url filtering
HTTP/HTTPS URL Filtering
Intercept and inspect all web traffic via Squid proxy. Enforce category-based and custom-rule policies at scale.
$ egctl policy list --all
access control
ACL Engine
Define policies with IP ranges, domain wildcards, regex patterns, and time-based rules with your favorite editor.
$ vim rules.d/90-denyurlshort.acls
network access control
Enterprise
NAC Integration
Authenticate and authorise network endpoints before granting access. Seamlessly integrates with Active Directory, RADIUS and LDAP.
$ egctl nac status
threat mitigation
Standard Enterprise
Threat Intelligence Feeds
Hourly-refreshed domains and HTTP Headers blocklists. Blocks C2 beacons, sensible data exfiltration, and phishing sites.
$ egctl threats feed verify --show-hash
captive portal

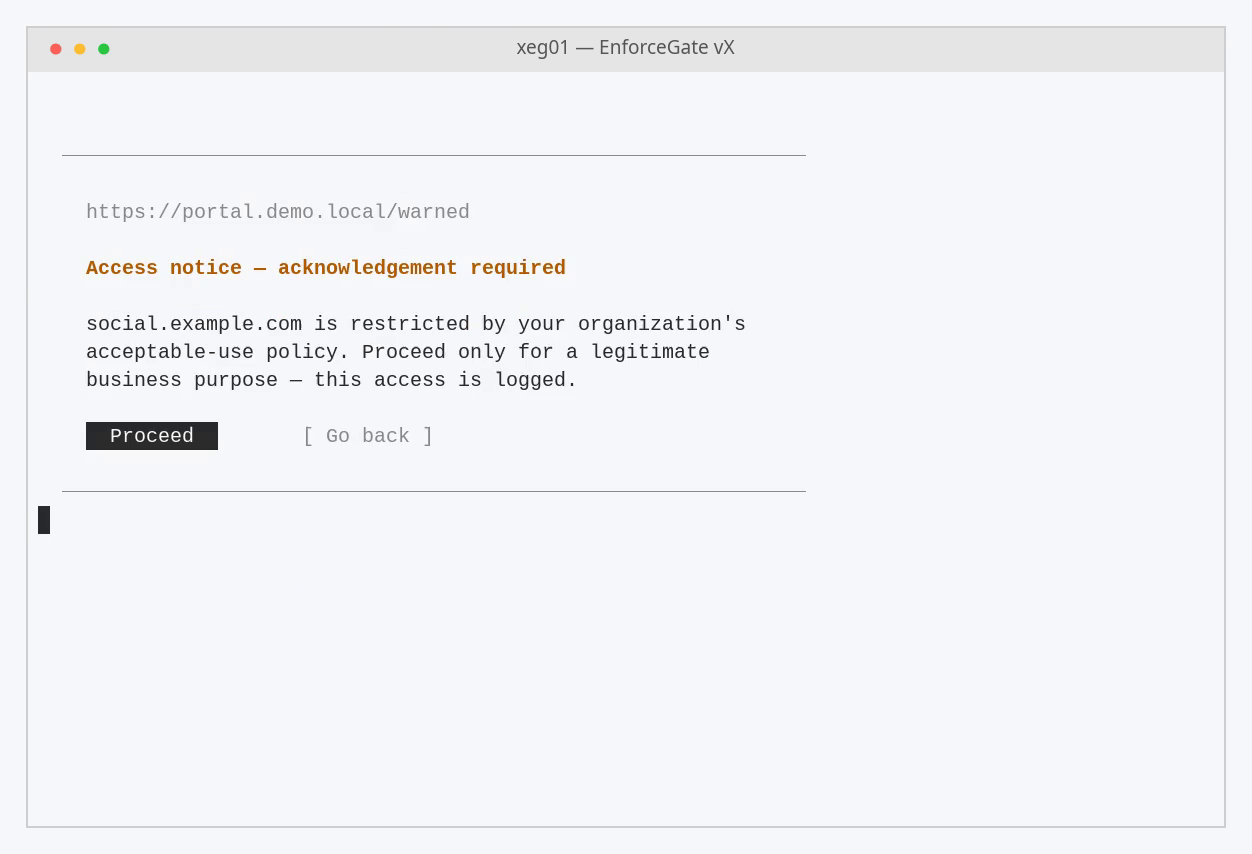

Captive Portal
Redirect suspicious or policy-violating users to a configurable captive portal page. Full branding support via templates.
$ egctl portal status --extensive
operations
Zero-Downtime Reloads
Push policy and ACL updates live without breaking connections. Hot-reload applies thousands of changes in a few seconds only.
$ egctl policy reload --confirm
observability
Enterprise
Structured Audit Logs & SIEM
Every enforcement decision and admin action is logged in structured JSON with a tamper-evident chain. Export in CEF or LEEF format, stream via syslog, or push to Splunk, Graylog, or any SIEM.
$ egctl log export --format cef --since 1h
installation

Deploy the appliance,
own the CLI.

Runs on VMware vSphere, Hyper-V, Linux KVM, or Docker. All operations are performed through egctl.

00
Download the appliance package
Log in to the Exosys software download portal and download both the archive and its signature file.
EnforceGate-vX-2026.01.0380beta1-docker-x64.tar.bz2
EnforceGate-vX-2026.01.0380beta1-docker-x64.tar.bz2.sig
01
Verify the package signature
Verify the release signature with cosign before unpacking. Never deploy an image you haven't verified.
$ cosign verify-blob EnforceGate-vX-2026.01.0380beta1-docker-x64.tar.bz2 \
  --signature EnforceGate-vX-2026.01.0380beta1-docker-x64.tar.bz2.sig \
  --certificate-identity security@exosys.ch \
  --certificate-oidc-issuer https://accounts.exosys.ch
02
Unpack the archive
Extract to a directory of your choosing. The archive contains the Docker image files, a docker-compose.yml, and a default configuration.
$ mkdir -p /srv/enforcegate
$ tar -xjf EnforceGate-vX-2026.01.0380beta1-docker-x64.tar.bz2 \
  -C /srv/enforcegate --strip-components=1
03
Import the Docker images
Load the engine, portal, and squid-connector images using docker load.
$ for f in /srv/enforcegate/images/*.tar.gz; \
  do docker load -i "$f"; done
04
Start with Docker Compose
Start the appliance using Docker Compose.
$ docker compose -f /srv/enforcegate/docker-compose.yml up -d
05
Bootstrap the config & register your key
Generate a baseline configuration.
$ egctl config init --output /srv/enforcegate/etc/config/
06
Load policies & verify
Apply your ACLs and policies, then confirm the engine is enforcing correctly.
$ egctl policy reload
$ egctl status
fast, seamless docker installation
ready
# log in to exosys.ch/support/software/downloads
# and download the archive and its signature file

$ cosign verify-blob EnforceGate-vX-2026.01.0380beta1-docker-x64.tar.bz2 \
  --signature EnforceGate-vX-2026.01.0380beta1-docker-x64.tar.bz2.sig \
  --certificate-identity security@exosys.ch \
  --certificate-oidc-issuer https://accounts.exosys.ch
Verified OK

$ mkdir -p /srv/enforcegate && \
  tar -xjf EnforceGate-vX-2026.01.0380beta1-docker-x64.tar.bz2 \
  -C /srv/enforcegate --strip-components=1

$ docker load -i /srv/enforcegate/images/enforcegate-engine-2026.01.0380beta1.tar.gz
Loaded image: exosys/enforcegate-engine:2026.01.0380beta1
$ docker load -i /srv/enforcegate/images/enforcegate-portal-2026.01.0380beta1.tar.gz
Loaded image: exosys/enforcegate-portal:2026.01.0380beta1
$ docker load -i /srv/enforcegate/images/enforcegate-squid-connector-2026.01.0380beta1.tar.gz
Loaded image: exosys/enforcegate-squid-connector:2026.01.0380beta1

$ docker compose -f /srv/enforcegate/docker-compose.yml up -d
[+] Running 3/3
✔ Container enforcegate-engine Started
✔ Container enforcegate-portal Started
✔ Container enforcegate-squid-connector Started

$ egctl config init --output /srv/enforcegate/etc/config/
✓ wrote /etc/eg/components.yaml
✓ wrote /etc/eg/policies.yaml
✓ wrote /etc/eg/acls.d/default.yaml

$ egctl policy reload --brief
✓ 2,187,440 rules loaded

$ egctl show-status
EnforceGate Engine Status: UP
EnforceGate Database Status: UP
EnforceGate API Status: UP
$
policies & acls

Plain-text rules.
Instant enforcement.

Policies are simple .acls files living in /opt/enforcegate/etc/rules.d/. Name them with a numeric prefix — lower numbers win. One cgacls policy reload and they're live.

/opt/enforcegate/etc/rules.d/90-denyurlshort.acls
DENY
# deny url shortening domains
deny-urlshortening-domains: {
match-domain-list: /usr/var/enforcegate/lists/urlshorts.txt
action: deny
description: Access to URL shortening services is not permitted
}
how it works
policy nameUnique identifier — used in logs and audit trails.
match-domain-listPoints to a flat text file — one domain per line. Evaluated against the request hostname.
action: denyBlocks the request immediately. User is redirected to the captive portal if enabled.
descriptionMessage shown on the captive portal block page. Human-readable.
/opt/enforcegate/etc/rules.d/10-allowswissdomains.acls
PERMIT
# Allow websites with .ch gtld
allow-swissdomains: {
match-uri-regex: ^(https?:\/\/)?[^\/]+[.]ch
action: permit
description: swiss domain names ending with .ch
}
how it works
match-uri-regexMatches the full URI against a POSIX extended regular expression. Supports http and https.
action: permitAllows the request to pass through without modification, regardless of other rules.
precedence 10-Evaluated before the 90-denyurlshort file — explicit allows always take priority.
/opt/enforcegate/etc/rules.d/50-redirectsocial.acls
REDIRECT
# Redirect social media to captive portal during work hours
restrict-social-media: {
match-domain-list: /usr/var/enforcegate/lists/socialmedia.txt
action: redirect
description: Social media is restricted during business hours
}
how it works
action: redirectSends the user to the configured captive portal URL instead of blocking silently.
match-domain-listEvaluated against the request hostname. One domain per line in the referenced file.
descriptionDisplayed verbatim on the captive portal landing page so users understand the restriction.
Precedence-based evaluation. Files are processed in ascending numeric order. A 10-allow*.acls rule is always evaluated before a 90-deny*.acls rule — making override behaviour explicit and auditable. EnforceGate operates deny-all by default: anything not explicitly permitted is blocked.
cgacls — load & verify
live
# verify file checksums before loading
$ egctl policy verify rules.d/
✓ 10-allowswissdomains.acls sha256:e4b2a1...
✓ 50-redirectsocial.acls sha256:7f3c8d...
✓ 90-denyurlshort.acls sha256:a92fe1...

# load and validate all rules files
$ egctl policy reload
Reading rules.d/10-allowswissdomains.acls OK
Reading rules.d/50-redirectsocial.acls OK
Reading rules.d/90-denyurlshort.acls OK
Validating 3 policies... OK
Writing to database... OK

# signal the engine to apply new policies
$ egctl engine reload
Signaling engine reload... OK
$
editions

Pick the right build
for your infrastructure.

EnforceGate vX ships in three editions — from a lightweight single-node deployment for small teams to a multi-node cluster with threat intelligence feeds for large-scale environments.

Currency
Lite
Tech Savvy Users
Standard
Recommended
Enterprise
Enterprise Features
filtering
HTTP/HTTPS URL filtering ✓ ✓ ✓
ACL rules 1,000 10,000 100,000
Policy management Basic Full Full
Squid connector ✓ ✓ ✓
network access control (NAC)
Captive portal ✓ ✓ ✓
Active Directory ✕ ✕ ✓
LDAP ✕ ✕ ✓
RADIUS ✕ ✕ ✓
management
CLI ✓ ✓ ✓
Web GUI ✕ ✓ ✓
REST API ✓ ✓ ✓
deployment
Node topology Single Single Multi-node
Hypervisors Docker Docker · VMware · Hyper-V · KVM Docker · VMware · Hyper-V · KVM
Throughput 10 Gbps+†1 10 Gbps+†1 10 Gbps+†1
Hardware x86_64 x86_64 x86_64
security
Threat intelligence feeds ✕ ✓ ✓
Zero-day feed ✕ ✕ ✓
SIEM export ✕ ✕ ✓
support
Support tier Community†2 Standard Priority + SLA
pricing — annual subscription
Annual license†3 USD 199 / yr USD 495 / yr
†1 Throughput depends on hardware specifications, hypervisor configuration, and network topology. Actual performance may vary by installation.
†2 Community support is provided through a shared support space where users can ask questions, share configurations, and help each other. No response time is guaranteed, however this space is actively monitored by the Exosys development team.
†3 Prices are for an annual subscription license. The software is fully operational throughout the active subscription period. Once the subscription expires, the product can no longer be used.
Open Beta · Starting Soon

Get early access
to EnforceGate vX.

Open to IT and security teams of all sizes — from solo sysadmins to enterprise engineering teams. If you manage network security, EnforceGate vX is built for you. Register and we'll send an invite when your slot opens.

✓ Free of charge — no credit card required
✓ Full access to the vX engine, egctl CLI & REST API
✓ Direct channel to the engineering team
✓ Priority support during the beta window
✓ Shape features before GA release
register for access
Something went wrong — please try again.
No spam. No commitment. Invite-only. Unsubscribe anytime.
✓
You're on the list.
We'll email when your invite is ready.
get started

Your network.
Your rules.

Self-hosted. No proprietary hardware. No per-seat fees. Full audit trail from day one.

$ deploy now → read the docs
